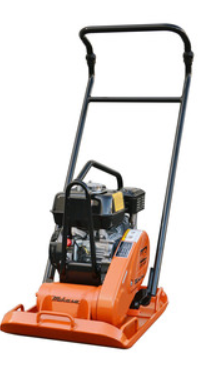

Recognized as the industry standard for compacting granular soils and asphalt.
- Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
- Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
- Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
- Solid, high-strength steel base plate for durability.
- Tubular steel roll bar protects engine components and provides central lifting point.
- Sealed belt cover keeps dirt and rocks out extending belt life.
- Open base plate design makes for easier removal of dirt and rock build-up.
- Cog-tooth belt drive enables longer life compared to conventional V-belts.
- Front mounted exciter assembly allows for easy service access.
- Removable, tool-free water tank can easily be refilled to 11.6 quart capacity.
Contact: 0 610 50 55 for Pricing
| Centrifugal Force | 3080 lbf | 13.7 kN |
| Exciter Speed | 5600 VPM | |
| Plate Size | 17.7 x 22.4 in 450 x 570 mm |
|
| Max Forward Speed Per Min. |
72 ft | 22 m |
| Fuel Consumption Per Hour |
0.31 gal | 1.17 L |
| Water Tank Capacity | 11.6 qt | 10.98 L |
| Overall Length | 36 in | 914 mm |
| Overall Width | 17.7 in | 450 mm |
| Overall Height | 39.5 in | 1003 mm |
| Shipping Dimensions | 33.5 x 18.5 x 27 in 851 x 470 x 686 mm |
|
| Operating Weight | 181 lb | 82 kg |
| Shipping Weight | 200 lb | 91 kg |
