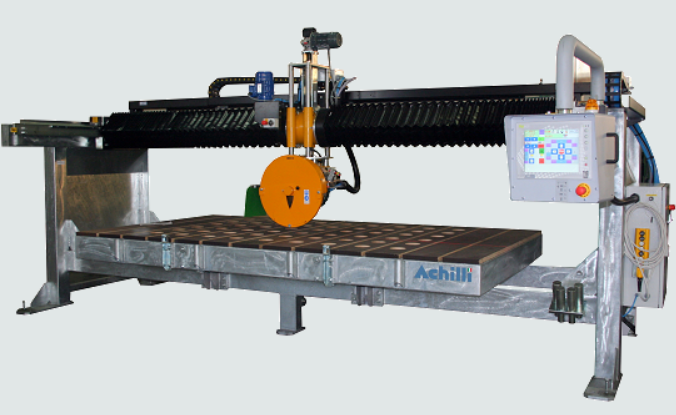

MBS TS is a best-selling bridge saw; the perfect combination of simplicity, flexibility and durability. The installation is easy and does not require foundation. The machine is equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The rotation of the head allows to perform interpolated angle cutting in all directions.
Contact Office for Details/Prices - +353861076819 info@accura.ie
X-axis travel | 3500mm (11’5”) |
---|---|
Y-axis travel | 1930mm (76”) |
Z-axis travel | 350 mm (13”) |
Worktable dimensions | 4800x2200mm (15’7”x7’2”) |
Max. diamond blade diameter | 350-525mm (14"-20") - 300-400mm (11"-15") |
Blade bore size | 50 mm (2”) |
Manual head tilt | 90° - 45° |
Head rotation |
0°- 90°- 180°- 270° / 0°- 360° |
Main motor power |
7.5kW = 10HP / 11kW = 15HP |
Main motor rotation speed | 1400 rpm 50Hz – 1700 rpm 60Hz |
Main motor variable speed (optional) | 800 - 3000 rpm |
Standard voltage/frequency |
400V-50/60Hz / 230V-60Hz 3ph. |
Cuts concrete, asphalt, stone, and brick
Longer lifespan with industrial diamond segments
High-speed cutting for maximum efficiency
