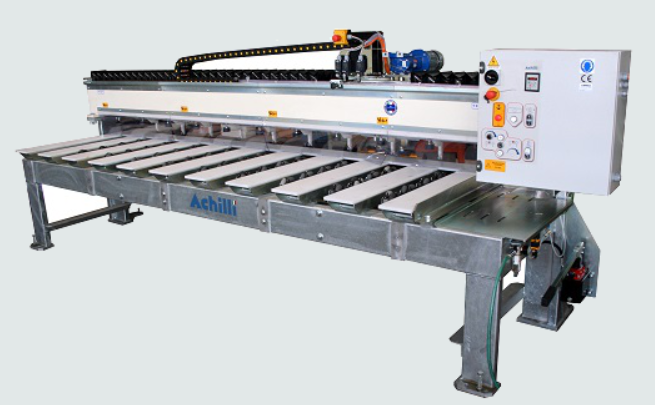

Professional stone saw for tilted cuts designed to work slabs "face down", it allows to perform perfect 45 degree cutting even on uncalibrated slabs. No width limitation of the slab to process; even the most narrow strips can be machined thanks to the special pneumatic pistons blocking the stone. The maximum cutting precision is guaranteed by the head travel on linear guides fitted with recirculating ball slides and by the position of the blade cutting from bottom upwards.
MSA professional mitre saw for tilted cuts:
- Steel frame with hot-dip galvanizing treatment for maximum resistance to wear and rust;
- Worktable made of anti-scratch plastic material slats;
- Maximum cutting precision is guaranteed by the head travelling on linear guides fitted with recirculating ball slides automatically lubricated;
- 11 pneumatic pistons and 3 slab stops to secure even the smallest workpieces in place during machining;
- Pneumatic pop-up slab stops to cut thin ceramic and sintered material slabs;
- Digital displays to visualize disc rpm, feed speed and main motor ammeter;
- Removable plastic splash guards, along the entire worktable;
- Precision handwheel to adjust the blade position when the cut does not start on the sharp corner.
Contact Office for Details/Prices - +353861076819 info@accura.ie
X axis travel | 3700 mm (145’’) |
---|---|
Worktable dimensions | 3700 x 1000 mm |
Diamond blade diameter | 350-400-450 mm (14’’- 18’’) |
Blade bore size | 50 mm |
Min/Max stone thickness | 0-80 mm (with pneumatic slab stops) |
Main motor power |
5,5kW = 7,5HP trifase |
Main motor rotation speed |
1400 rpm (50Hz) - 1700 rpm (60Hz) |
Main motor rotation speed (opt.) | 800 – 3400 rpm |
Standard voltage/ frequency |
3ph. 400V-50/60Hz 230V-60Hz |
Cuts concrete, asphalt, stone, and brick
Longer lifespan with industrial diamond segments
High-speed cutting for maximum efficiency
