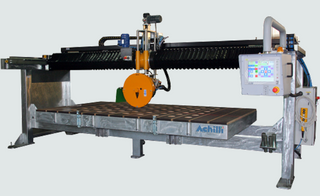

MBS TS is a best-selling bridge saw; the perfect combination of simplicity, flexibility and durability. The installation is easy and does not require foundation. The machine is equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The rotation of the head allows to perform interpolated angle cutting in all directions.

Contact Office for Details/Prices - +353861076819 info@accura.ie

X-axis travel 3500mm (11’5”)
Y-axis travel 1930mm (76”)
Z-axis travel 350 mm (13”)
Worktable dimensions 4800x2200mm (15’7”x7’2”)
Max. diamond blade diameter 350-525mm (14"-20") - 300-400mm (11"-15")
Blade bore size 50 mm (2”)
Manual head tilt 90° - 45°
Head rotation

0°- 90°- 180°- 270° / 0°- 360°

Main motor power

7.5kW = 10HP /

11kW = 15HP

Main motor rotation speed  1400 rpm 50Hz – 1700 rpm 60Hz
Main motor variable speed (optional) 800 - 3000 rpm
Standard voltage/frequency

400V-50/60Hz  /

230V-60Hz  3ph.

Ireland wide next day delivery

Longer lifespan with industrial diamond segments

Call us for product advice
