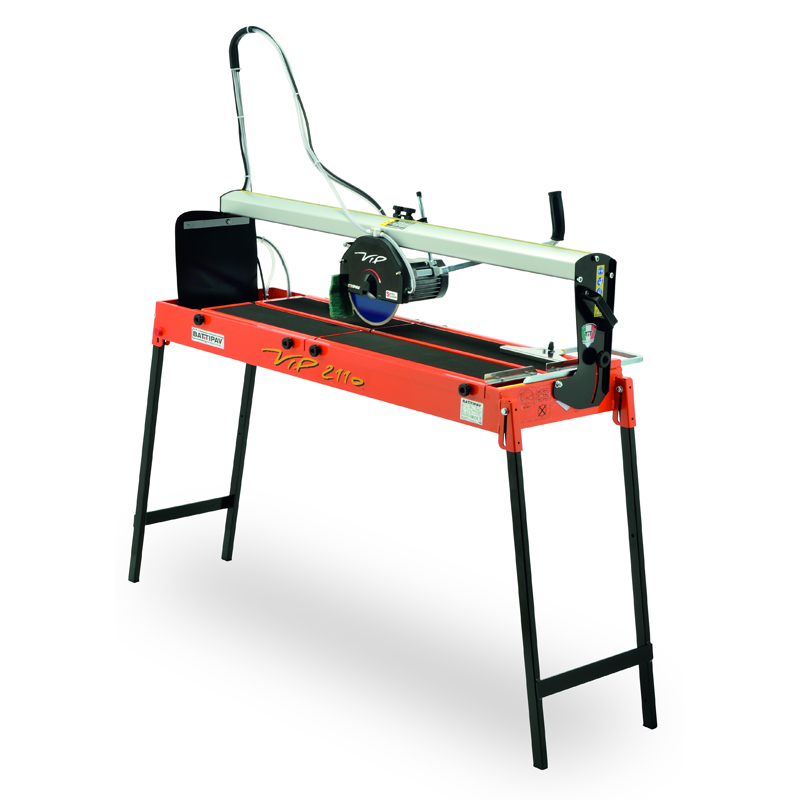

1200mm Wet Saw Rail/Bridge Saw for Stone, Porcelain & Concrete Paving and Tile Slabs
Electrical radial tile saws for straight and 45° angle cuts on single-double fired ceramic, porcelain gres.
Light and compact, it is equipped with sliding head and tilting engine.
The legs, closing under the working table, are standard.
Equipped with:
– Single-phase motor 110 V or 230V ~50Hz 1000 Watt

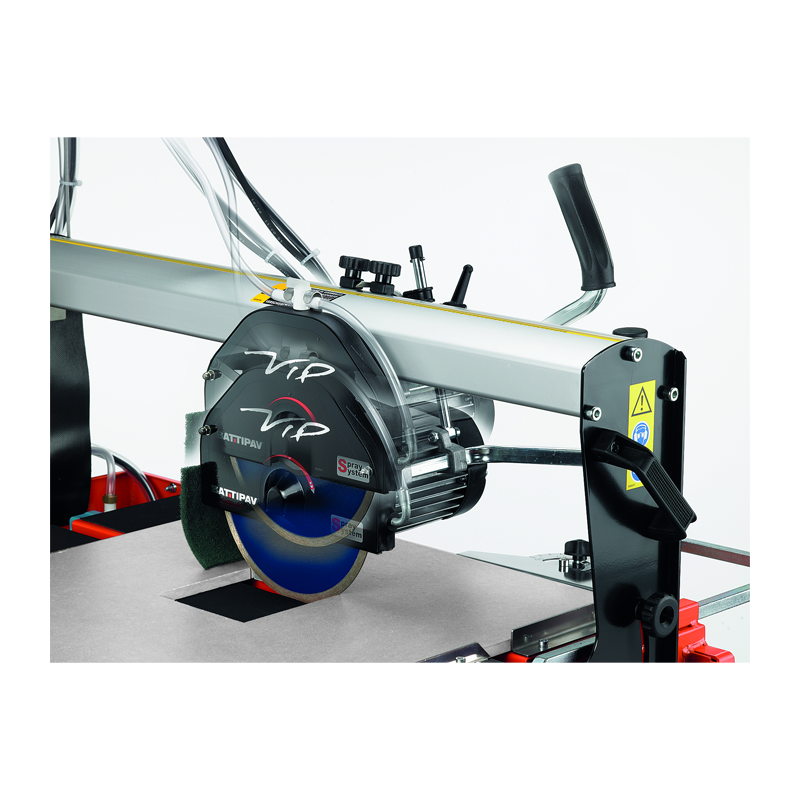

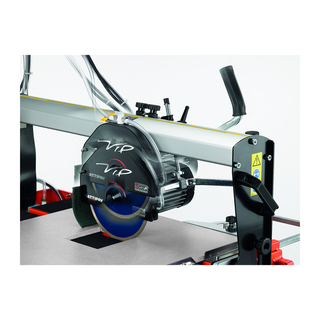

– Sliding cutting head and tilting engine
– Switch with release coil
– Diamond disk Ø200 c/c
– Stand
– Pump for water recycling type S1

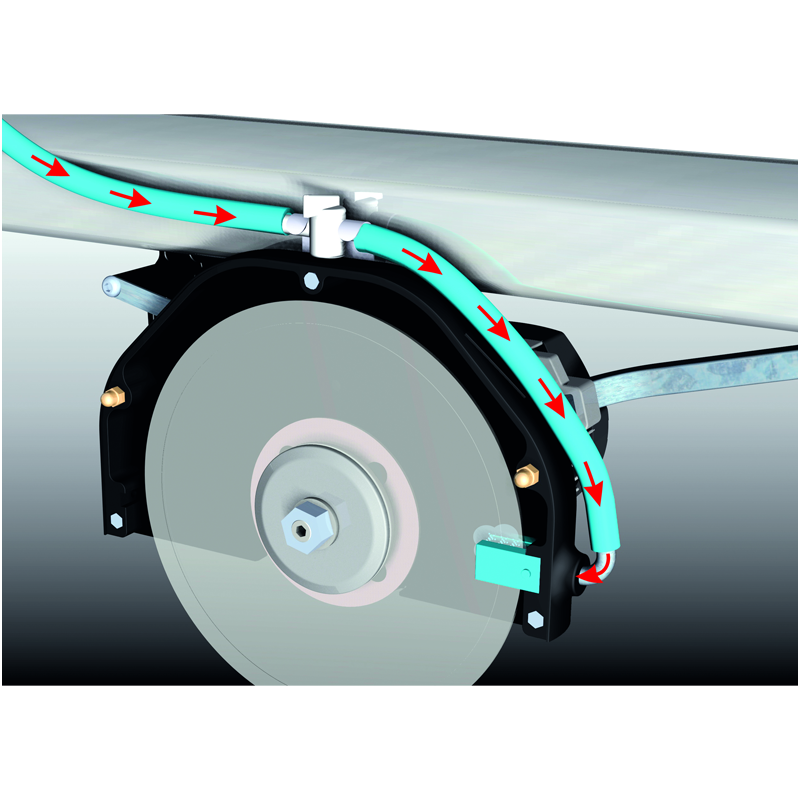

Water cooled
This saw is considered very good value offering an affordable solution to cutting Porcelain Slabs and Tiles and other large format stone and Cementous based material without over committing expensive budgets.
| MAX CUTTING LENGHT |
1200 mm |
|---|---|
| SIZE TILE FOR DIAGONAL CUTTING |
775×775 mm |
| MAX CUTTING THICKNESS |
40 mm |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT |
40 mm |
| DIAMOND BLADE DIAMETER |
200 mm |
| TOOL HOLE Spindle |
25,4 mm |
| POWER ENGINE |
1,8Hp / 1,4Kw |
| ROTATION SPEED |
2800rpm |
| WATER TANK CAPACITY |
40 liters |
| MAX CUTTING DEPTH WITH 2 RUNS |
55mm |
| ENGINE TYPE |
SINGLE-PHASE 230V~50Hz |
| WATER PUMP |
S0 |
| MACHINE'S DIMENSION |
1650x455xH1270 mm |
| PACKAGING DIMENSION |
1480x570x500 mm |
| WEIGHT |
42 kg |
| FENCE |
Standard |
| EXTENSION SIDE BENCH |
Optional |
| SIDE BENCH DIMESION |
1070×403 mm |
| THERMIC PROTECTION |
170°C |
| CUTTING DISK |
Standard |
